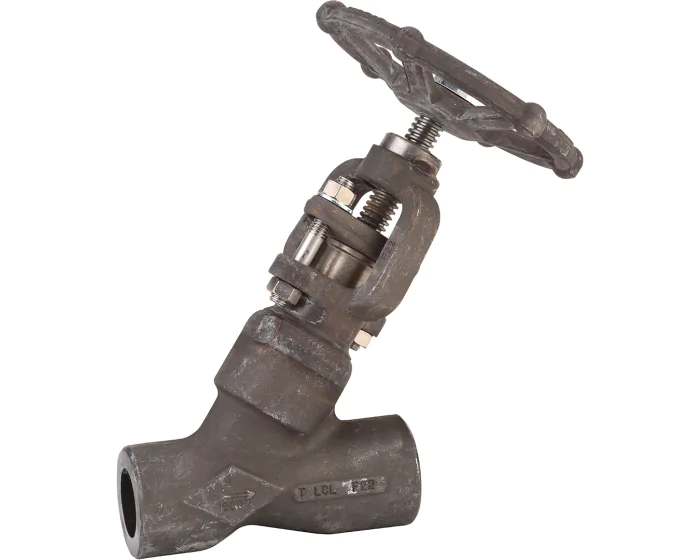

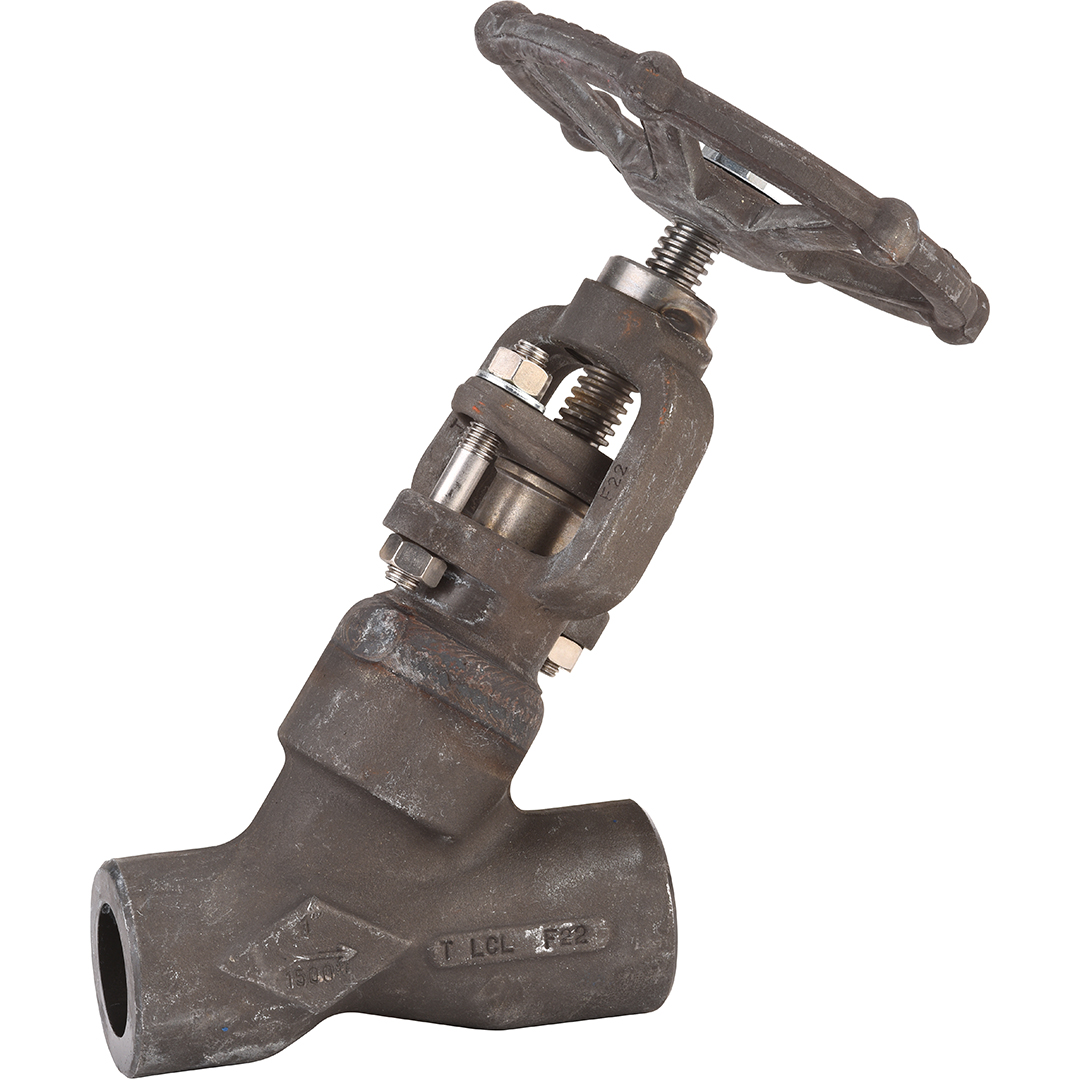

The 406 series globe valve, in carbon steel A182 F22, slanted seat, Class 1500, TRIM 5, full bore with welded bonnet, stainless steel seat, ATEX for petroleum, chemical, steam.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A182 F22 |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 5 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Welded |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 410 |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 110.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 3.9 |
| Body material | Carbon steel ASTM A182 F22 |
| Bore | Full |
| Packing gland | Yes |
| PS (bar) | 258 |
| Connections | Welding SW |
| Seats | Stellite Gr.6 |
| TS max (°C) | 540 |
| TS min (°C) | -29 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Plug material | Stainless steel ASTM A276 type 410 Stellited |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel ASTM A182 F22 Full DN15 - 1/2'' | 406015 | S1007525 |
€324.00
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A182 F22 Full DN20 - 3/4'' | 406020 | S1007526 |
€397.47
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A182 F22 Full DN25 - 1'' | 406025 | S1007527 |
€498.86
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A182 F22 Full DN40 - 1''1/2 | 406040 | S1007528 |
€901.21
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A182 F22 Full DN50 - 2'' | 406050 | S1007529 |
€933.50
(excl. btw)
|
add to cart |
